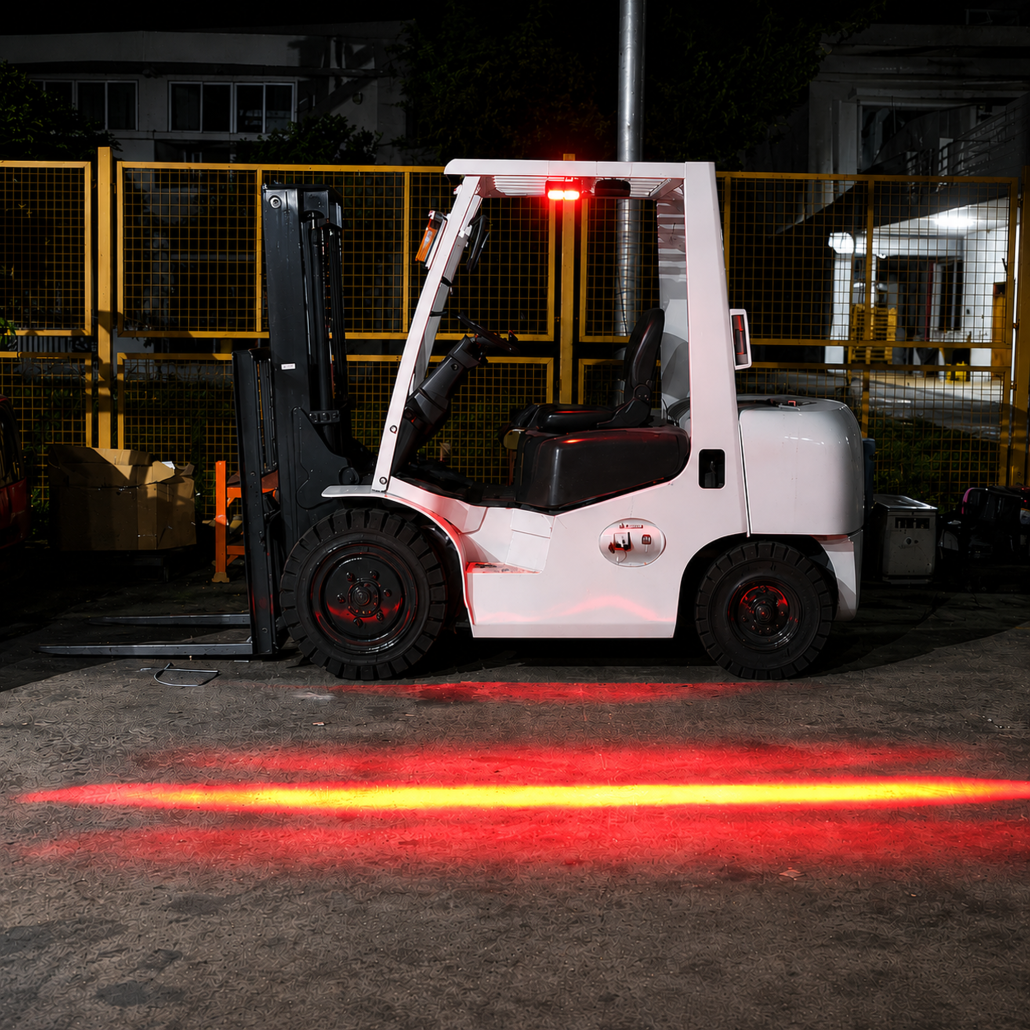

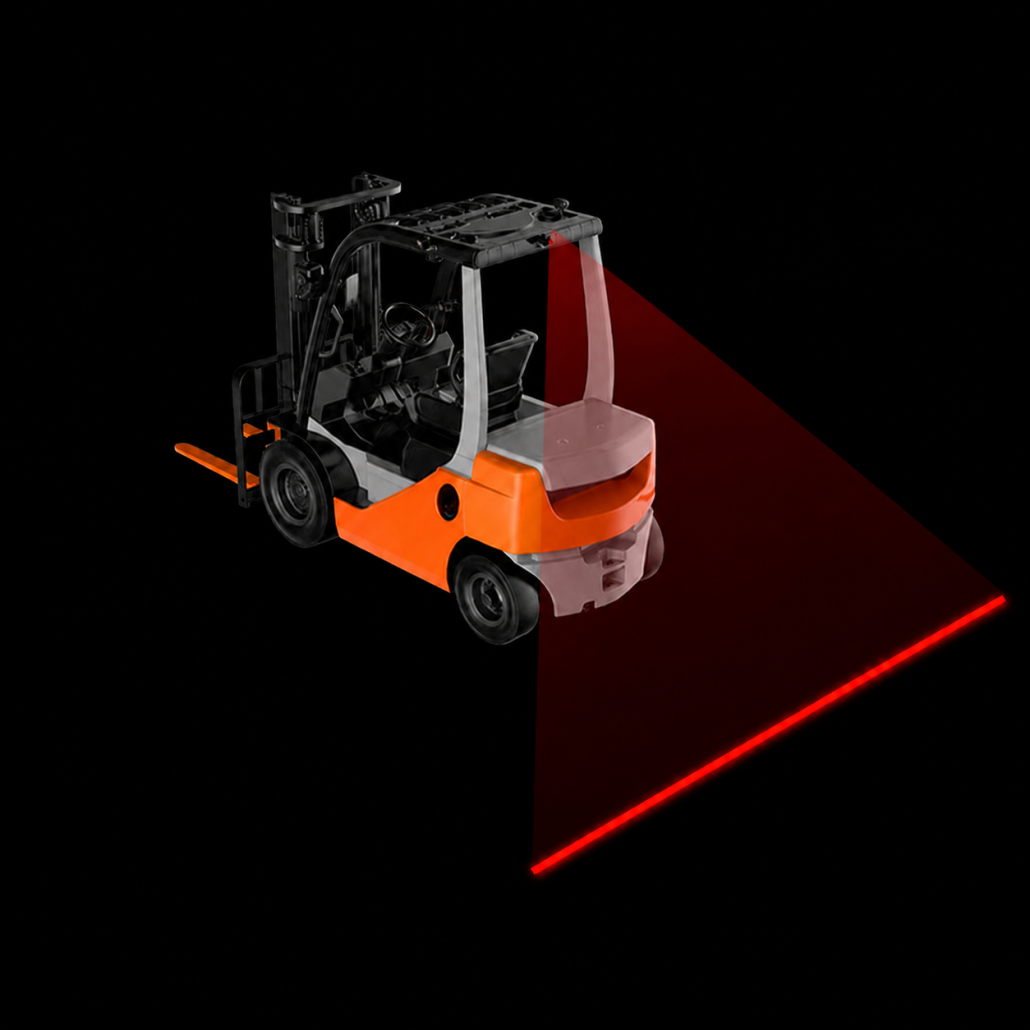

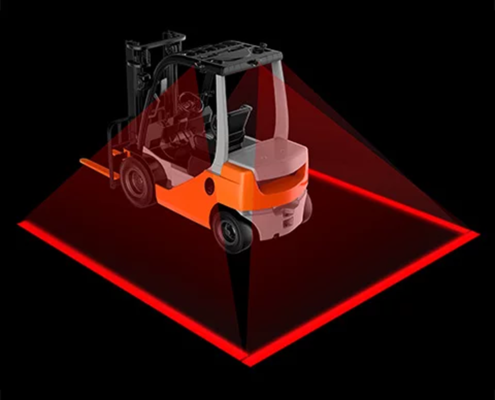

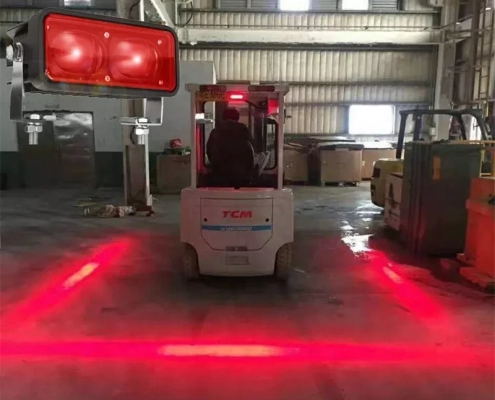

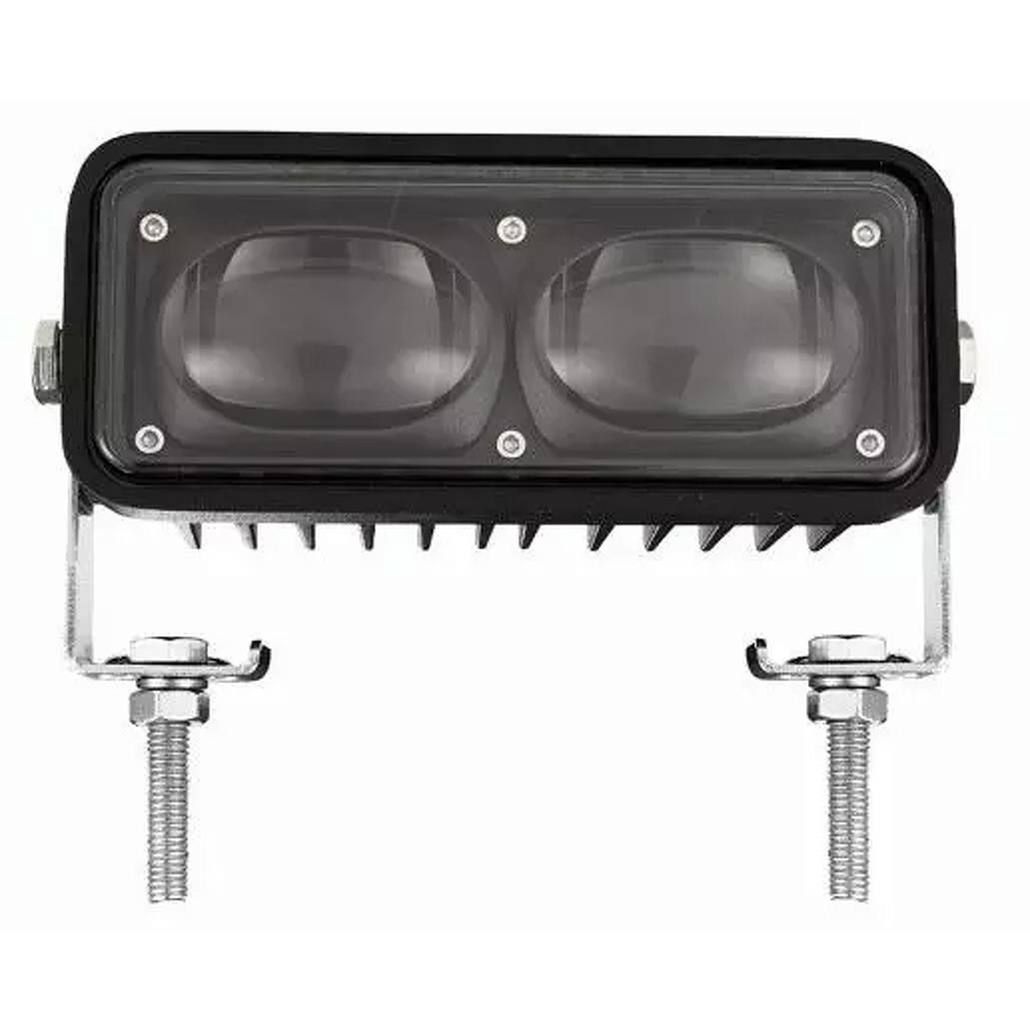

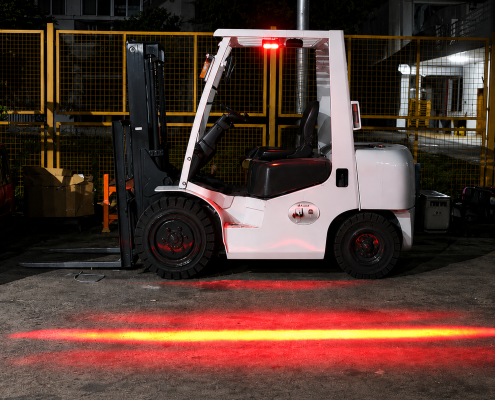

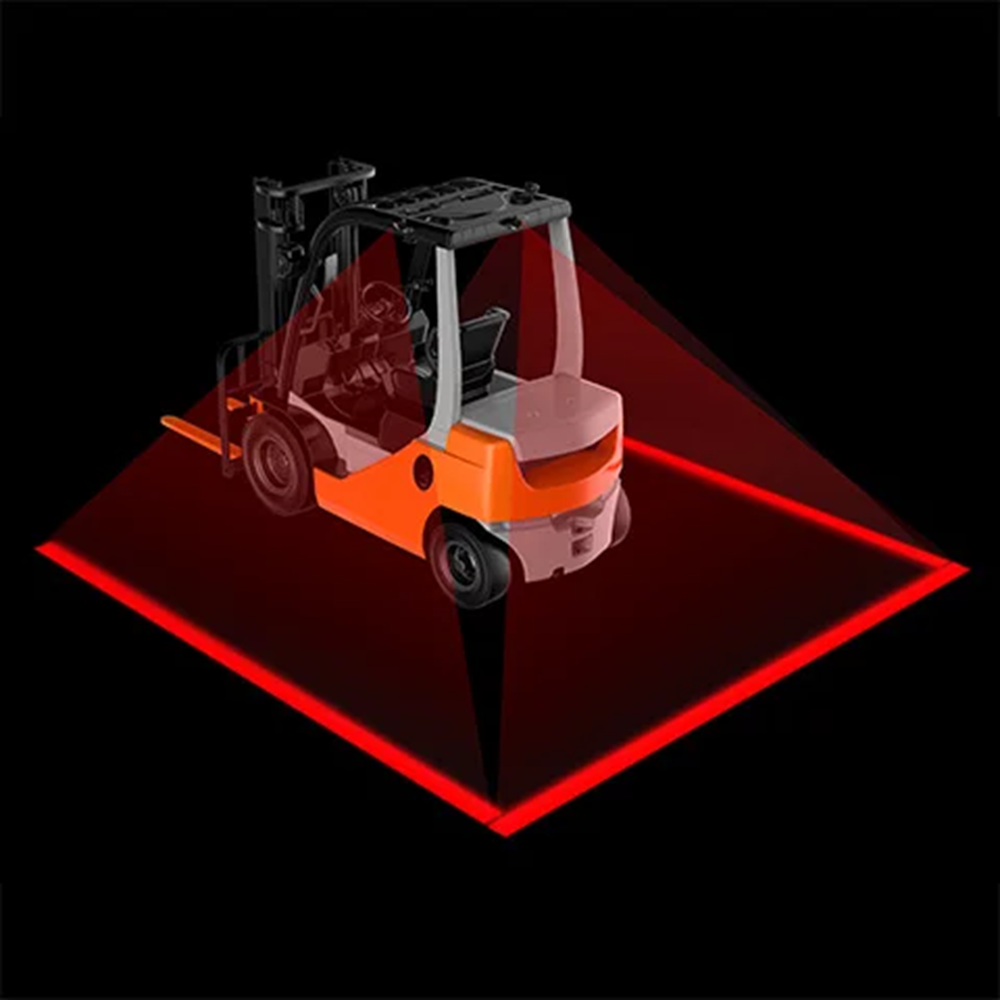

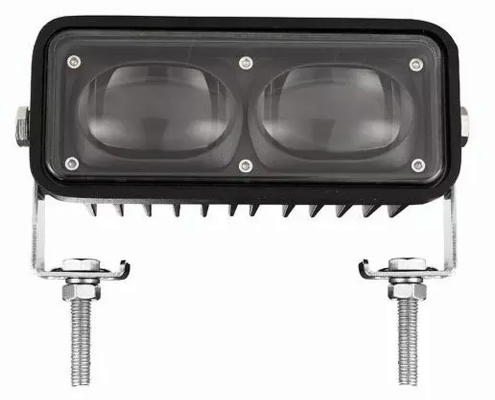

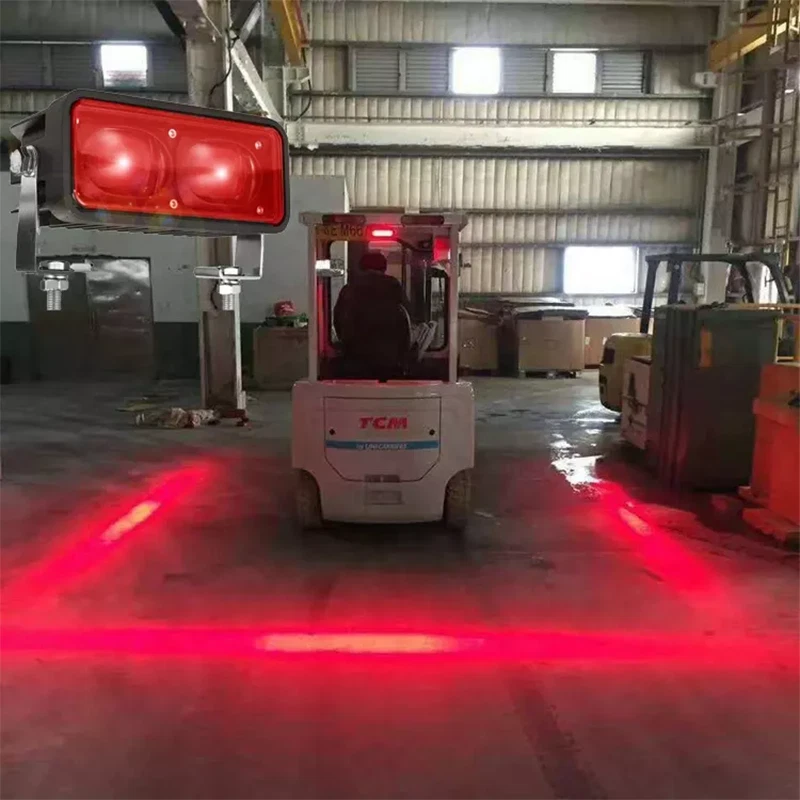

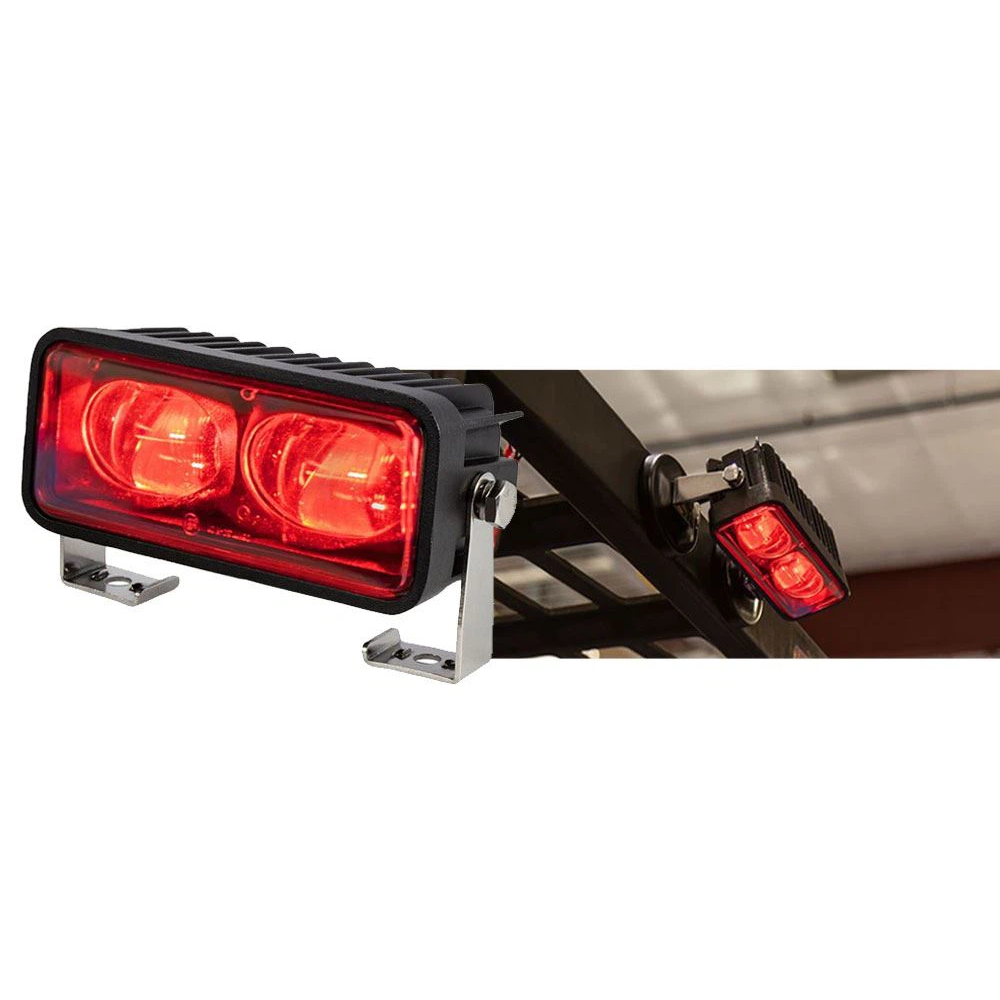

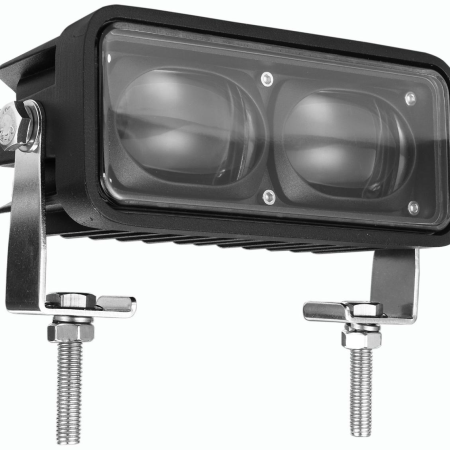

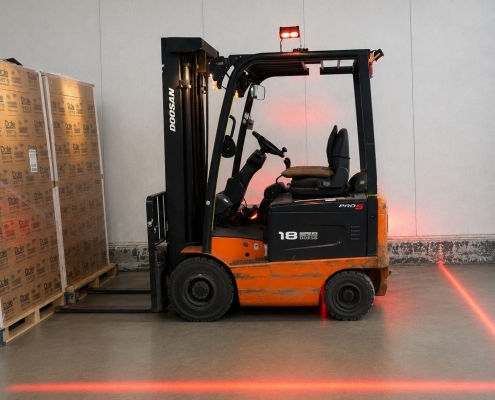

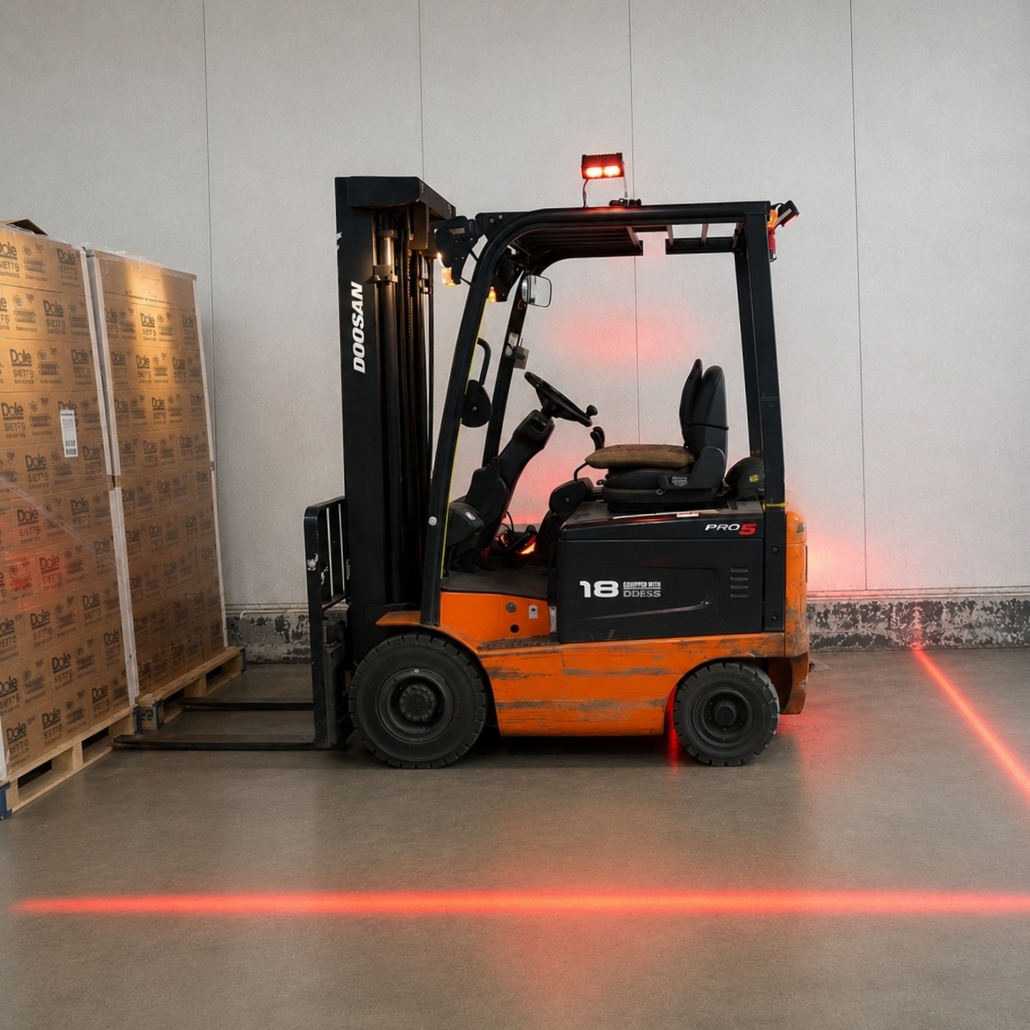

The Red LED Warning Lights are mounted on the top of the forklift cage and project a long, thin red beam on the floor adjacent to the forklift’s sides. The position of the light on the floor makes pedestrians aware of the safe distance to keep when alongside a forklift.

Suitable for all makes and models of forklifts and material handling equipment.

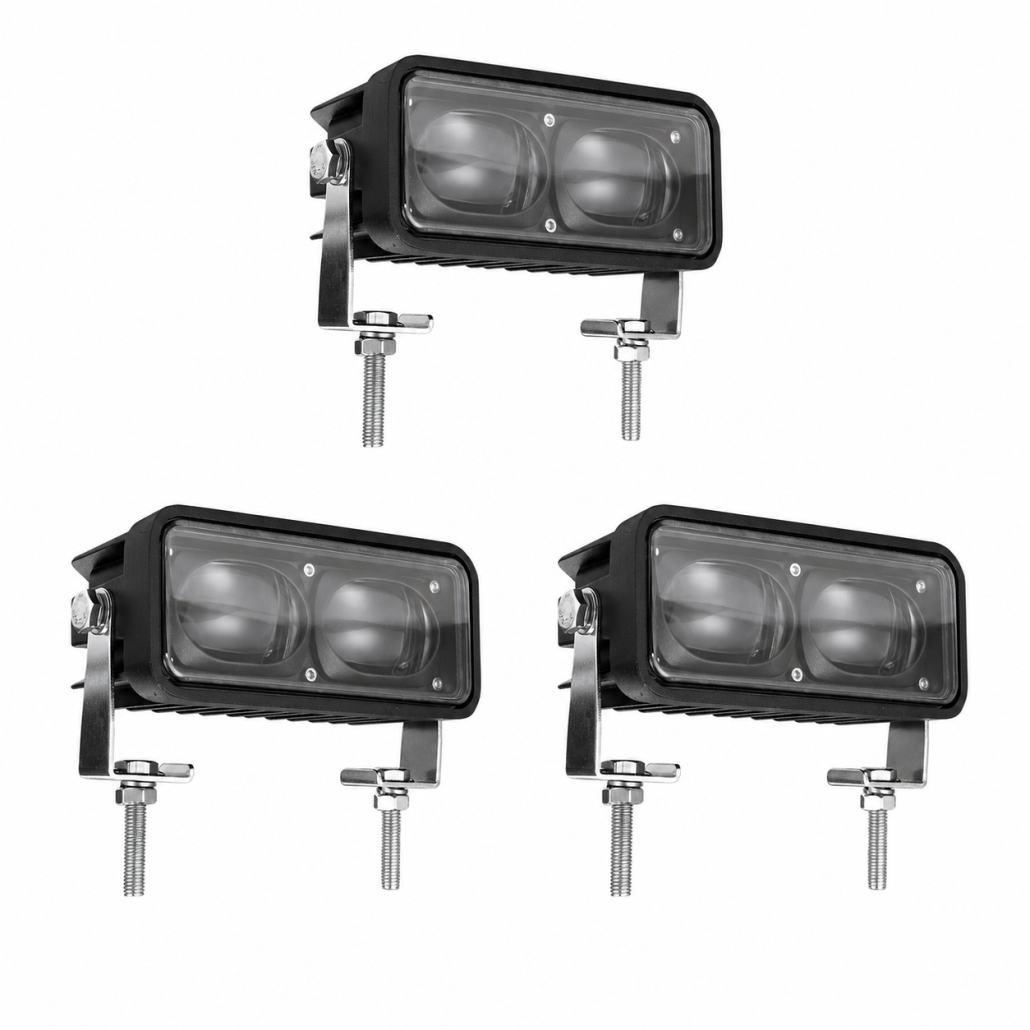

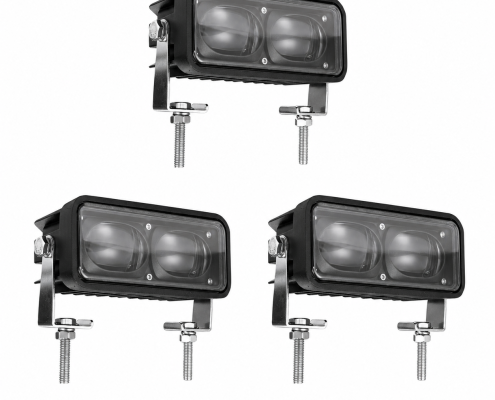

Available individually or as a discounted triple pack (three lights generally installed per forklift).

Features

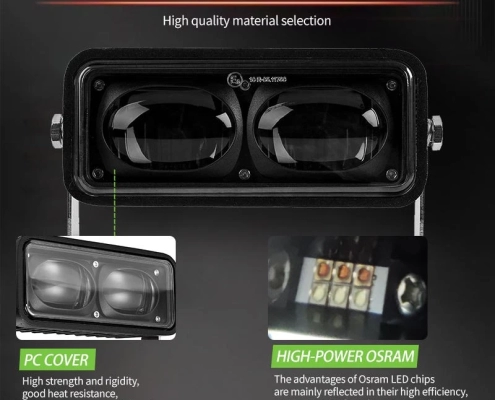

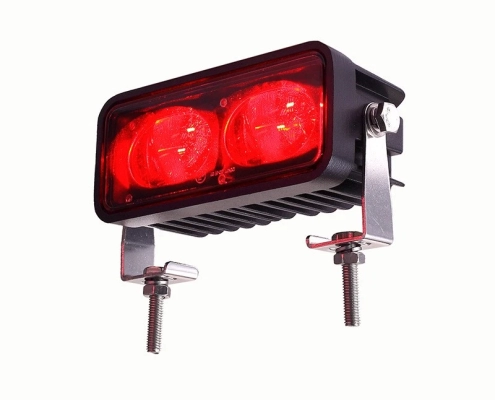

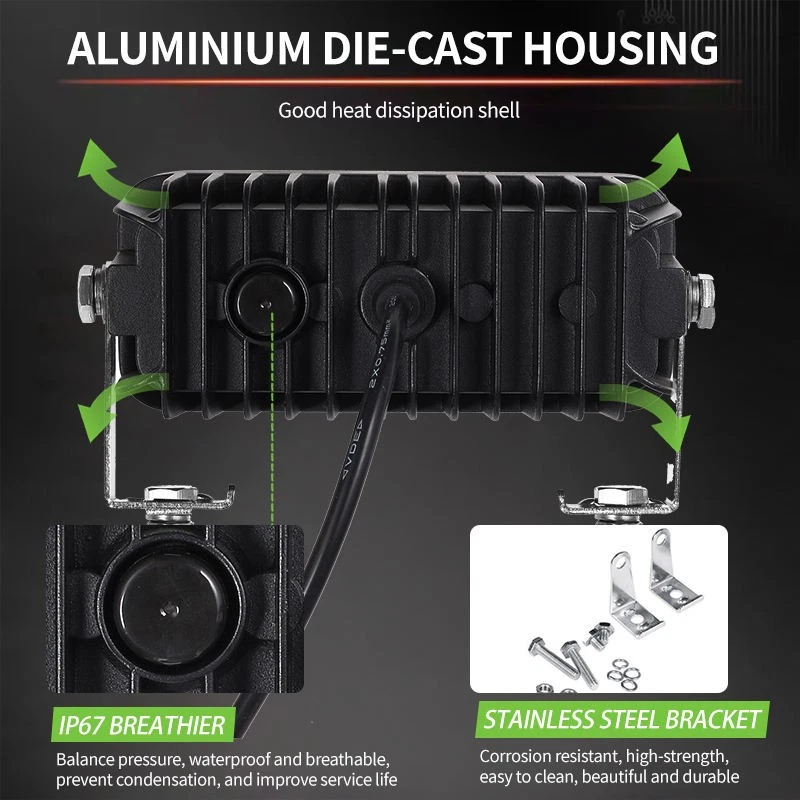

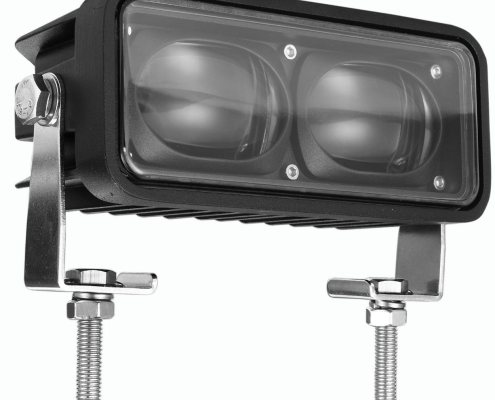

• Rugged Die Cast Aluminum Alloy Housing

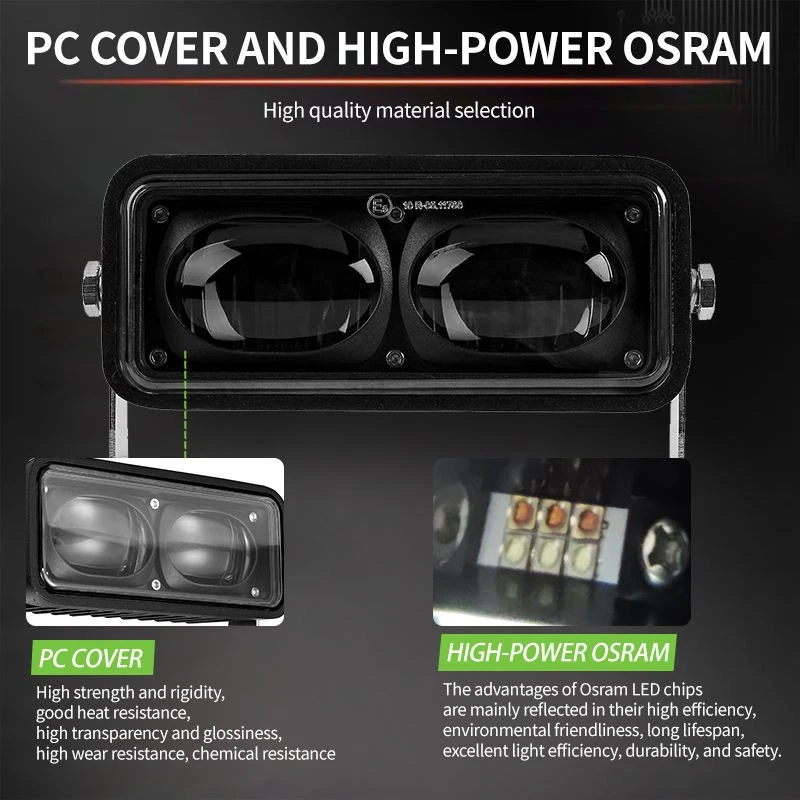

• Hard Coated Polycarbonate Lens

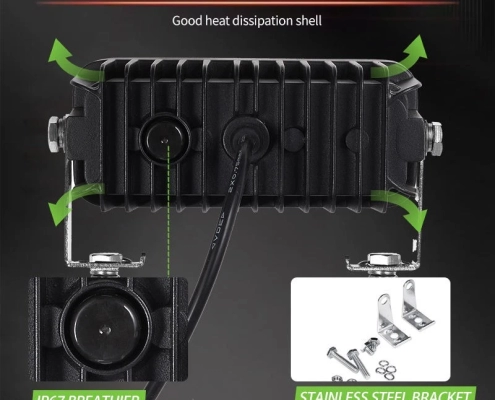

• Rear cooling fins for heat dissipation
• High Power OSRAM LED

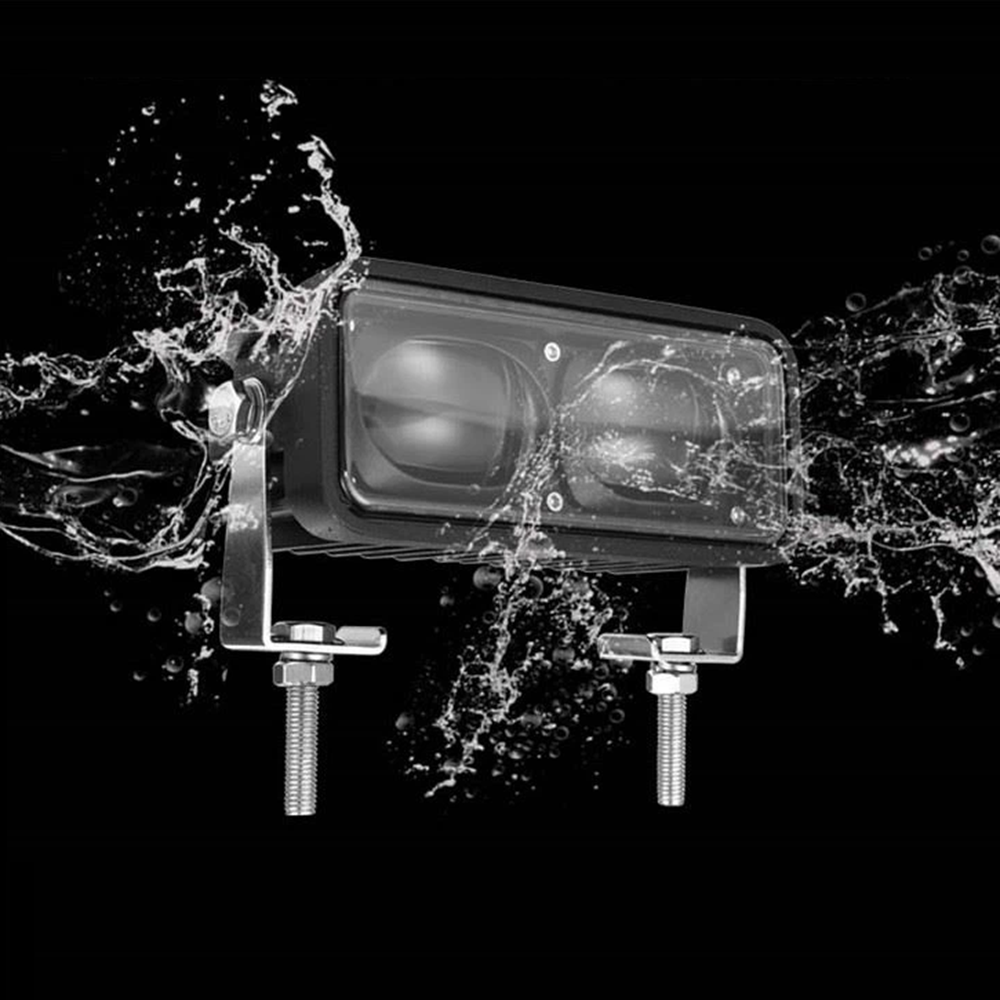

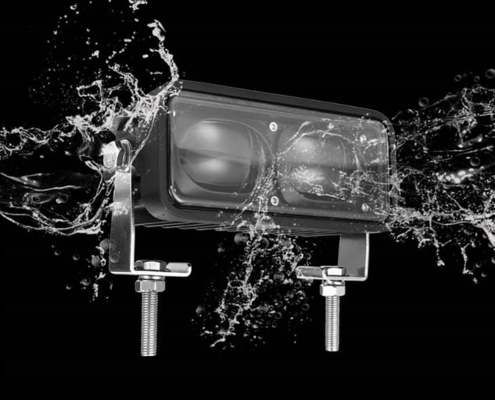

• Waterproof IP:68 Rated
• Dustproof
• Vibration Proof
• Shockproof
• Double insulated wire for electrical connection
• Suitable for Low and High Temperature Environments
• Reverse Polarity Protected
• Beam: Line Beam
• Warranty: 1 year

Technical Specifications

• LEDs: 6 x 3W Super Bright OSRAM High Power LEDs
• Voltage: 10～80V DC
• Color: Red
• Life Time: >50,000 Hours
• Working Temperature: -45°C to 85°C

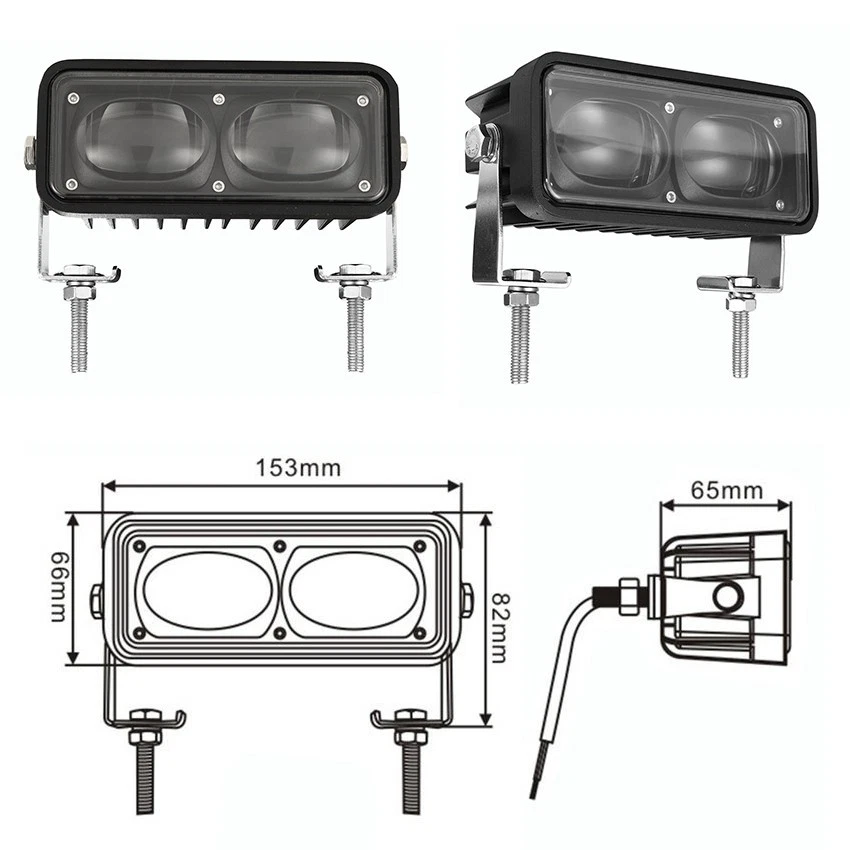

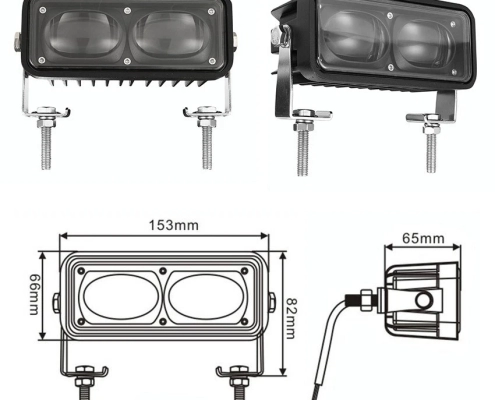

• Dimensions: 152 x 60 x 57 mm

Mounting

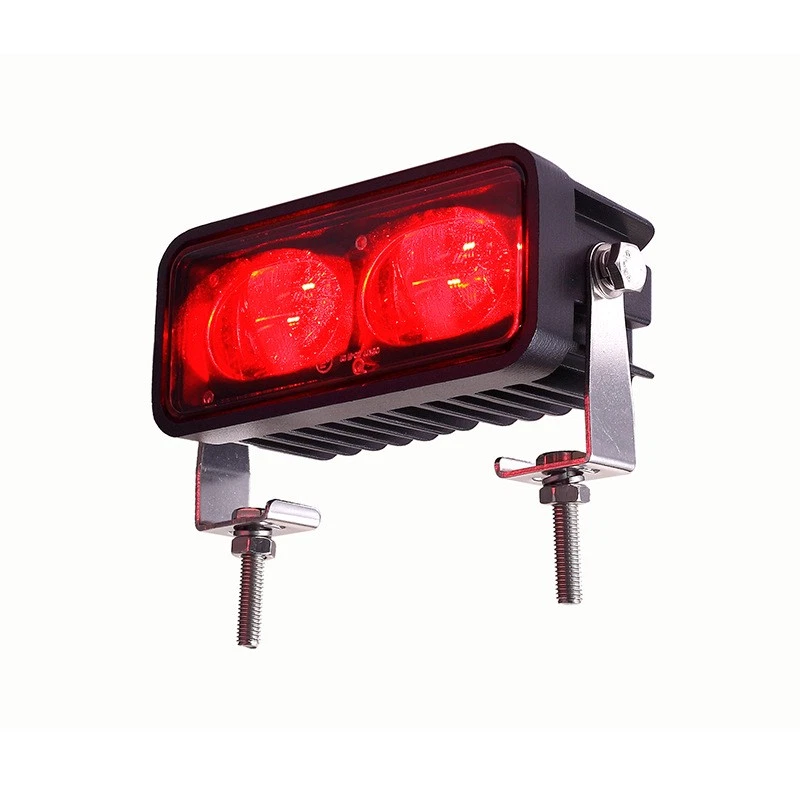

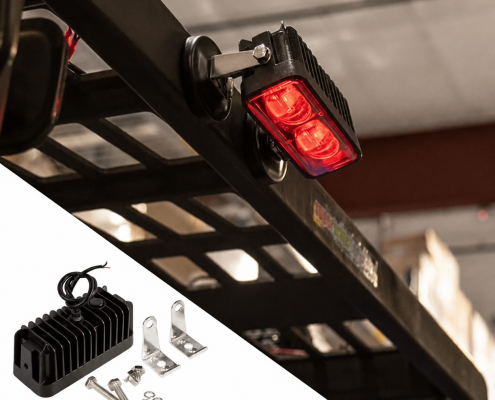

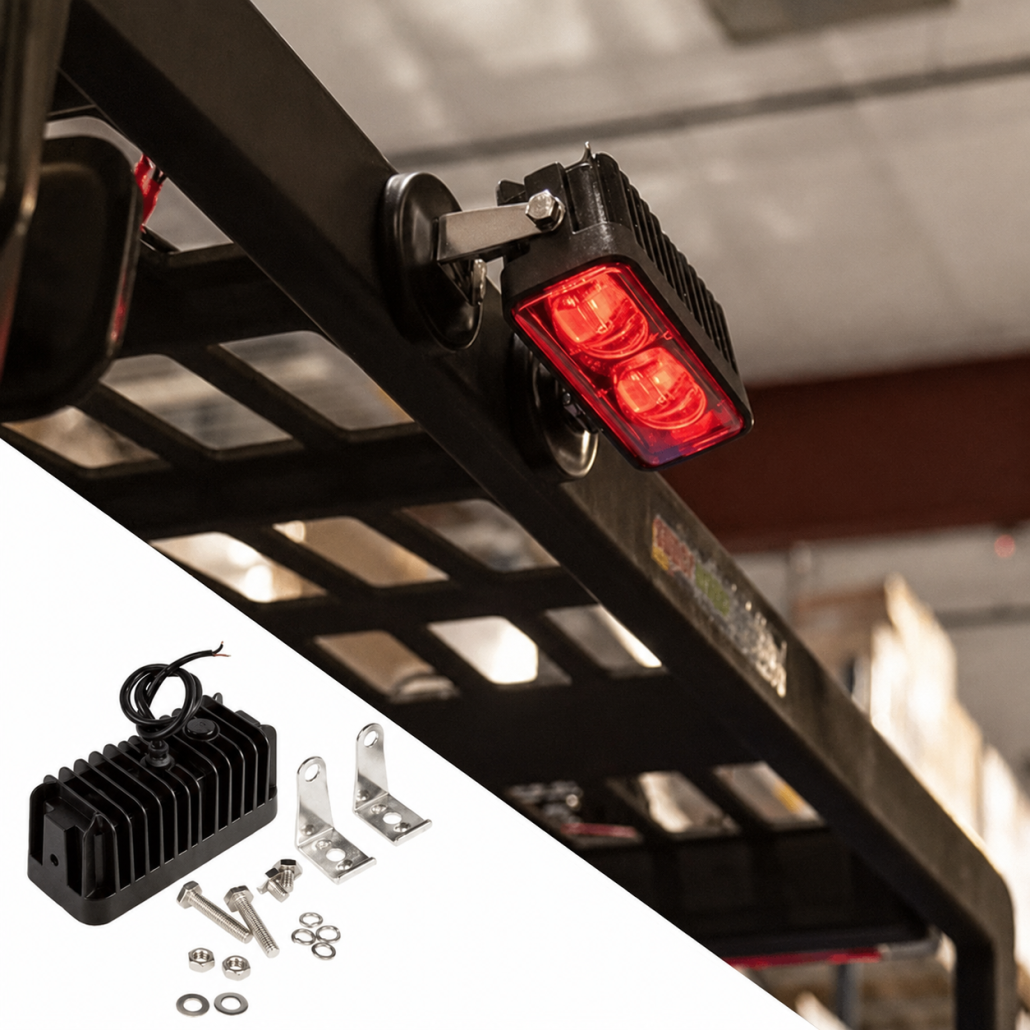

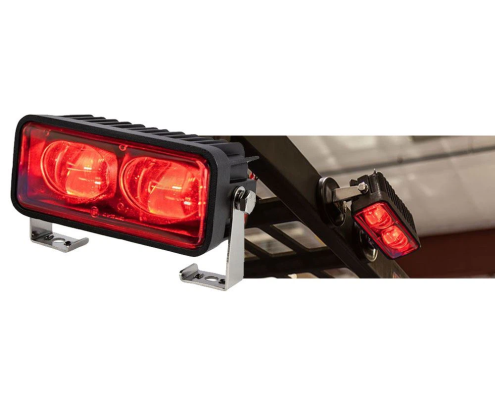

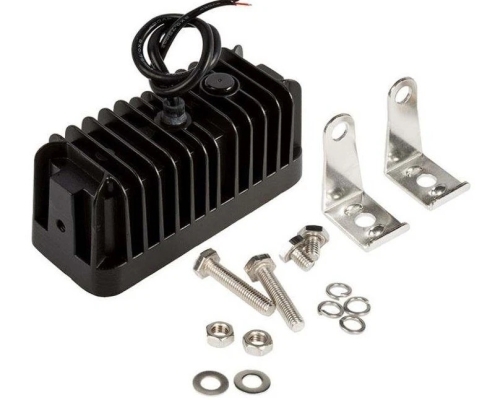

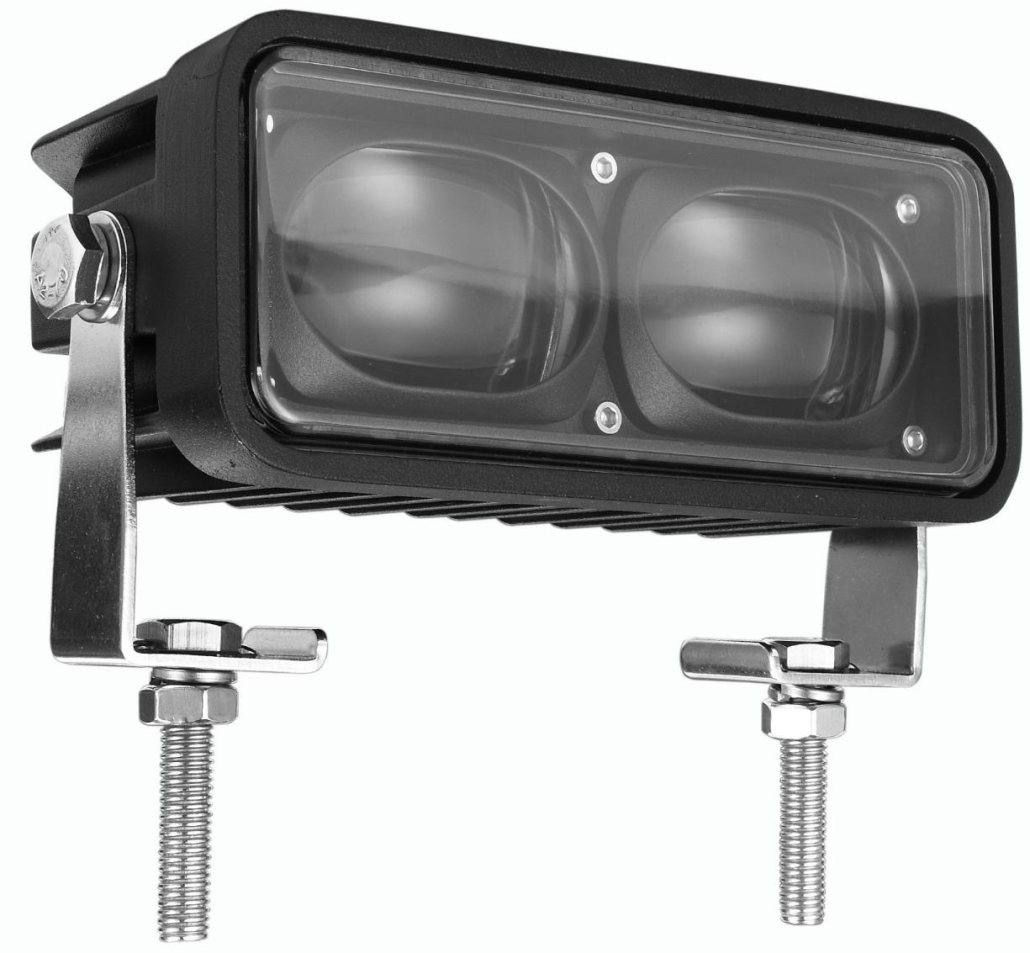

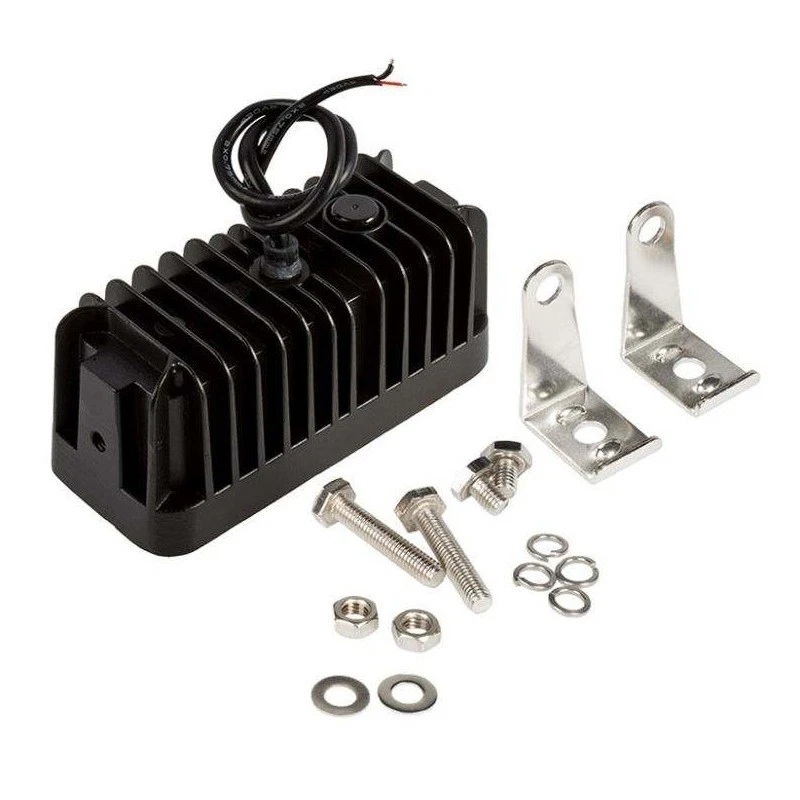

• Holes available/drilled in Forklift: Use Stainless Steel Mounting Bracket (included)

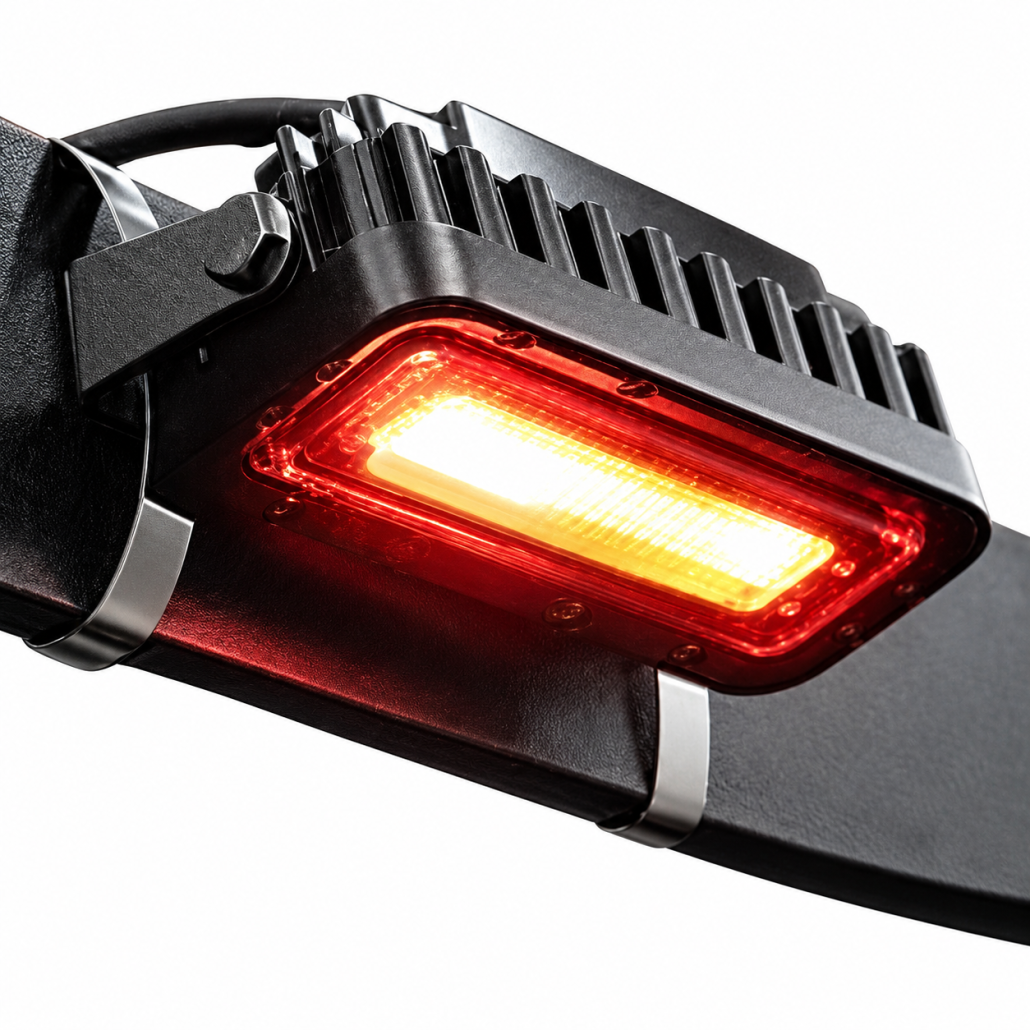

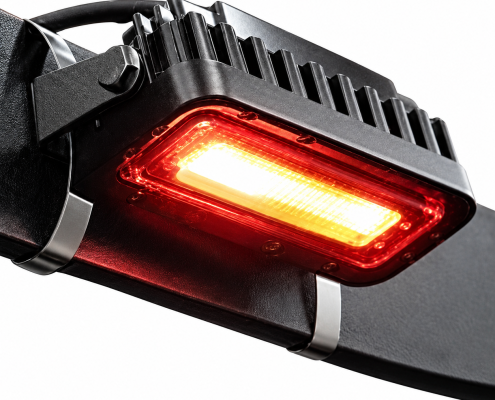

• Holes not available in Forklift: Mounting Bracket can be removed and Zone Light can be fastened to forklift cage with Stainless Steel Hose Clamps (not included)

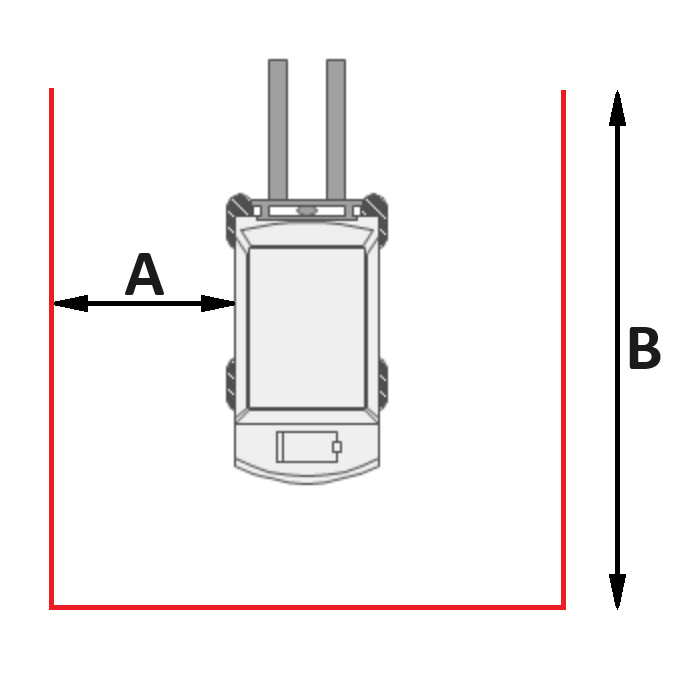

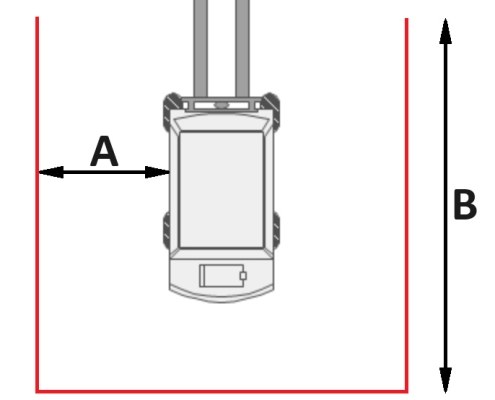

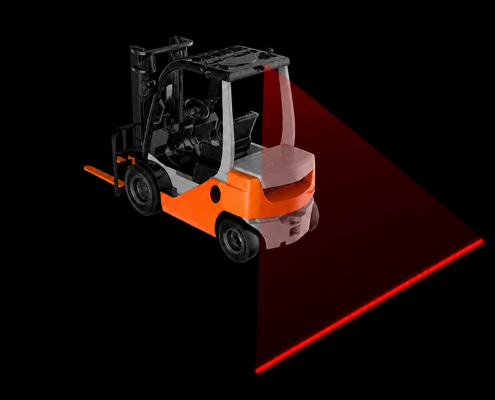

• Typically mounted and adjusted so Distance “A”  is 0.5m – 1.5m away from Forklift

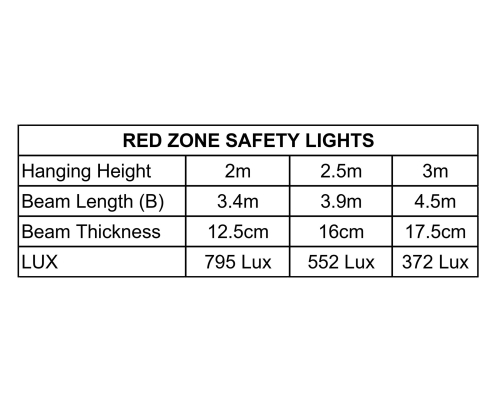

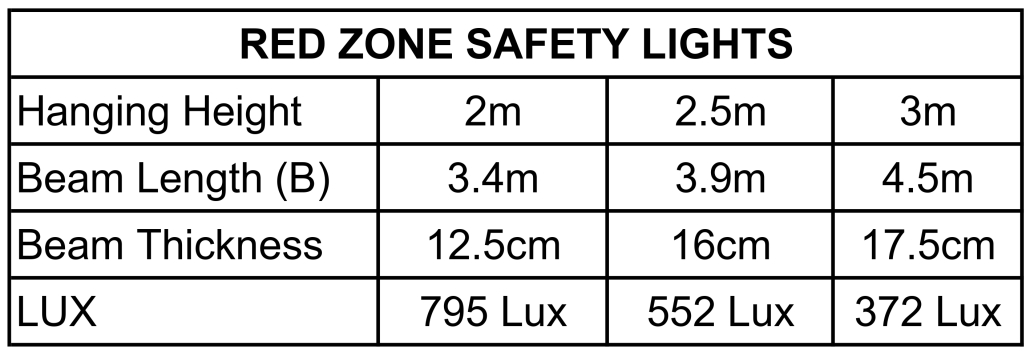

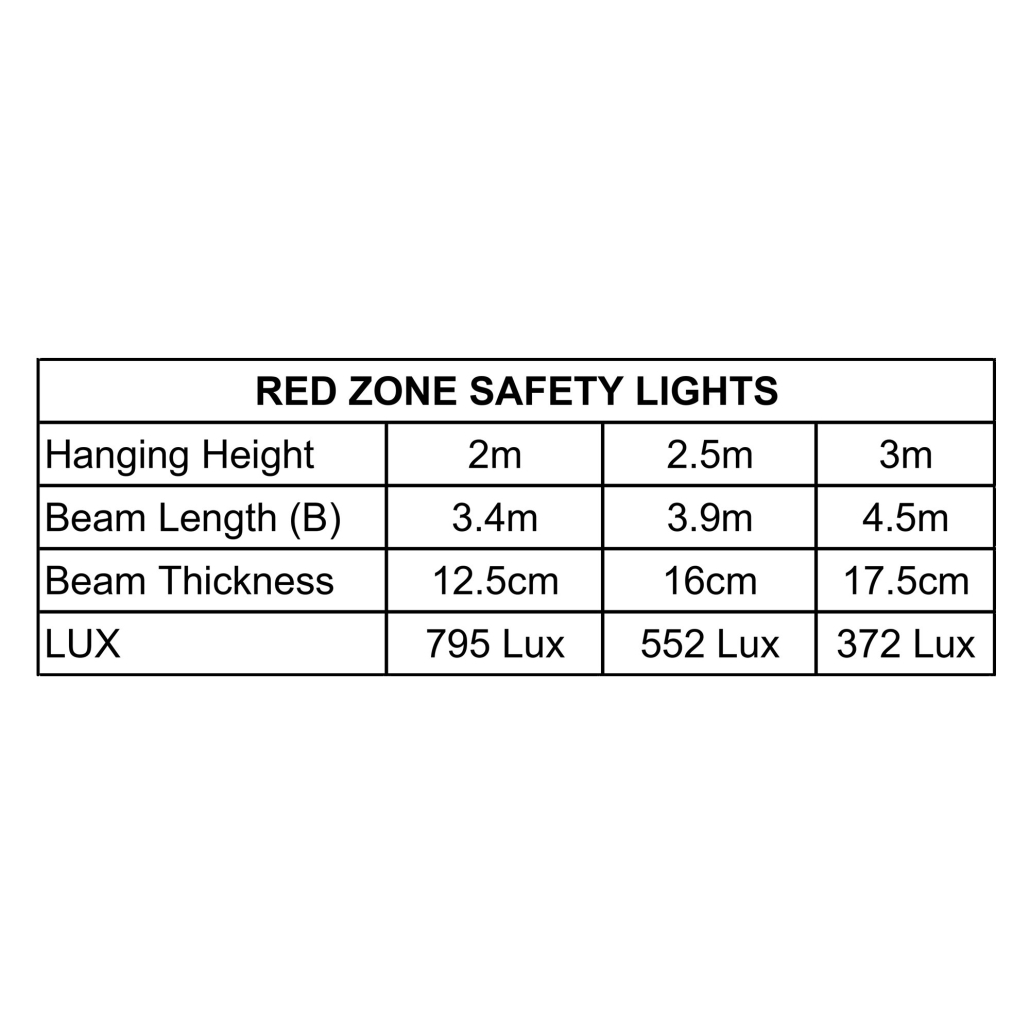

• Hanging Height refers to the height above the ground. Typically the light is mounted on top of the forklift so Hanging Height is set by forklift height.
• Beam Length refers to Dimension “B”.
• Beam Thickness is how ‘fat’ the beam is on the ground, i.e. the higher the light the more it spreads and hence the fatter it is.
• Lux is the measure of illuminance.

Available now from Forklift Battery Chargers Direct online store.
