H10 / SVC / HQC MULT-VOLTAGE THREE PHASE ELECTRIC FORKLIFT BATTERY CHARGER
GM Electric Three Phase Battery Charger ideal for Flooded Lead-Acid Batteries, Gel, AGM or Lithium.

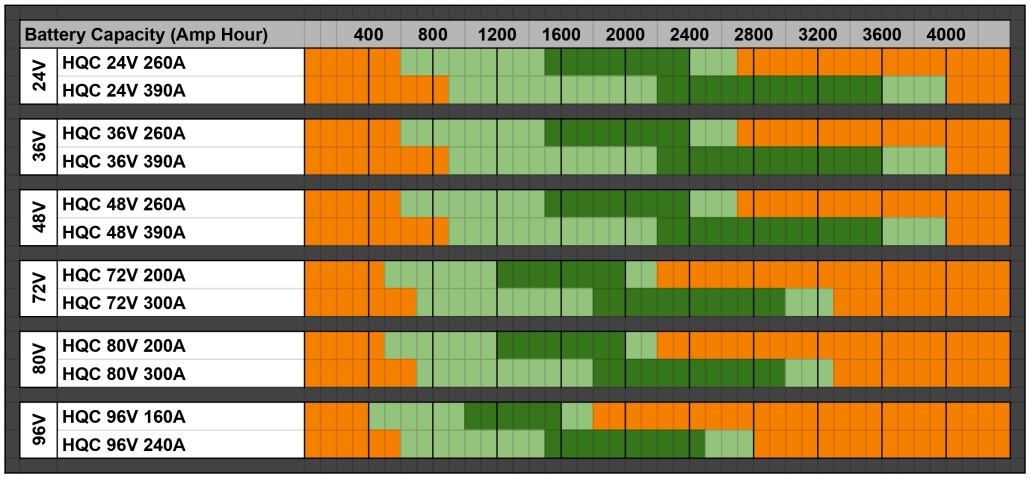

24 Volt
- 24V 100A Model ideal for 630 – 1,000Ah 24V Batteries
- 24V 140A Model ideal for 880 – 1,400Ah 24V Batteries
- 24V 260A Model ideal for 1,500 – 2,400Ah 24V Batteries
- 24V 390A Model ideal for 2,220 – 3,600Ah 24V Batteries
36 Volt
- 36V 60A Model ideal for 380 – 600Ah 36V Batteries
- 36V 80A Model ideal for 500 – 800Ah 36V Batteries
- 36V 100A Model ideal for 630 – 1,000Ah 36V Batteries
- 36V 140A Model ideal for 880 – 1,400Ah 36V Batteries
- 36V 260A Model ideal for 1,500 – 2,400Ah 36V Batteries
- 36V 390A Model ideal for 2,220 – 3,600Ah 36V Batteries
48 Volt
- 48V 60A Model ideal for 380 – 600Ah 48V Batteries
- 48V 80A Model ideal for 500 – 800Ah 48V Batteries
- 48V 100A Model ideal for 630 – 1,000Ah 48V Batteries
- 48V 140A Model ideal for 880 – 1,400Ah 48V Batteries
- 48V 260A Model ideal for 1,500 – 2,400Ah 48V Batteries
- 48V 390A Model ideal for 2,220 – 3,600Ah 48V Batteries
72 Volt
- 72V 60A Model ideal for 380 – 600Ah 72V Batteries
- 72V 80A Model ideal for 500 – 800Ah 72V Batteries
- 72V 100A Model ideal for 630 – 1,000Ah 72V Batteries
- 72V 120A Model ideal for 760 – 1,200Ah 72V Batteries
- 72V 200A Model ideal for 1,200 – 2,000Ah 72V Batteries
- 72V 300A Model ideal for 1,800 – 3,000Ah 72V Batteries
80 Volt
- 80V 60A Model ideal for 380 – 600Ah 80V Batteries
- 80V 80A Model ideal for 500 – 800Ah 80V Batteries
- 80V 100A Model ideal for 630 – 1,000Ah 80V Batteries
- 80V 120A Model ideal for 760 – 1,200Ah 80V Batteries
- 80V 200A Model ideal for 1,200 – 2,000Ah 80V Batteries
- 80V 300A Model ideal for 1,800 – 3,000Ah 80V Batteries
96 Volt
- 96V 50A Model ideal for 300 – 500Ah 96V Batteries
- 96V 80A Model ideal for 500 – 800Ah 96V Batteries
- 96V 160A Model ideal for 1,000 – 1,600Ah 96V Batteries
- 96V 240A Model ideal for 1,500 – 2,500Ah 96V Batteries
Supplied:
- with AC 10A, 20A, 32A, 40A or 50A (as required) Three Phase 4 Round Pin Plug
- with DC cables only (we can install your required DC plug for a small additional charge)
Two year warranty.
Technical specifications
- Three-phase power supply voltage 400Vac ±10% 50-60Hz
- High-performance ZVT Switching technology
- Efficiency ≈ 95%
- Form factor ≈ 92%
- Current control precision ±1A
- Voltage control precision ±0.1V
- Compensation of the voltage drop on the battery cables
- Charging process managed by microprocessor
- Charging current programmable via buttons
- For batteries: Gel, AGM or Lead-Acid Batteries
- Possibility to set using buttons: time, final charging voltage
- Possibility of desulphating batteries simply and quickly
- Programmable equalization function
- Programmable buffer function
- Display of current, voltage, Ah and time during charging
- Storage and display of 1000 charging cycles, with date/time, relevant data and any warnings or alarms
- Export of memories via Wi-Fi connection
- Program update via Wi-Fi
- Automatic or manual start
- Double thermal protection
- Protected against battery polarity inversion
- Thermostated forced ventilation
- Charging interruption when battery is disconnected
- Dimensions: 550 x 350 x 115 mm (larger for higher output models)
- Weight: 16 kg including cables (heavier for higher output models)

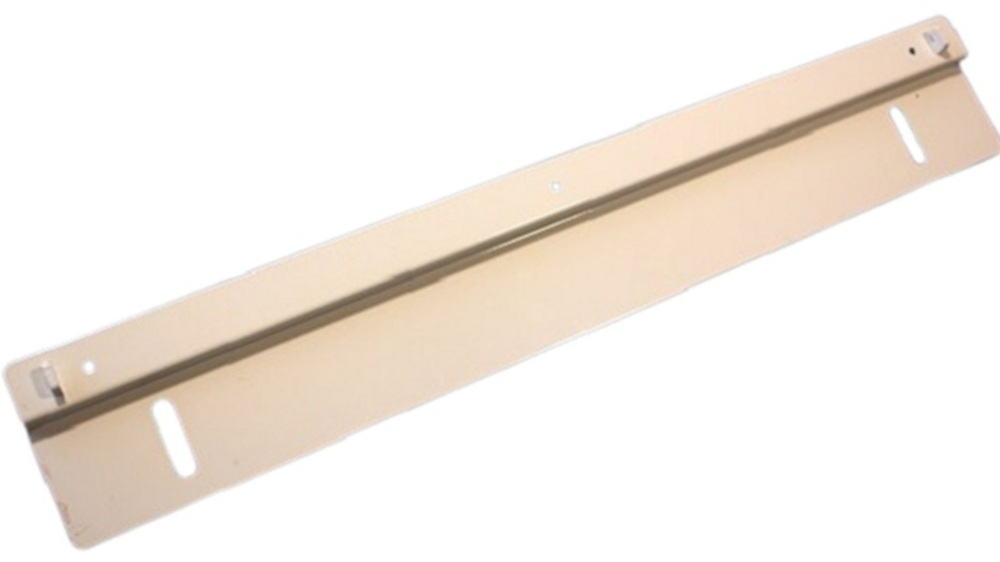

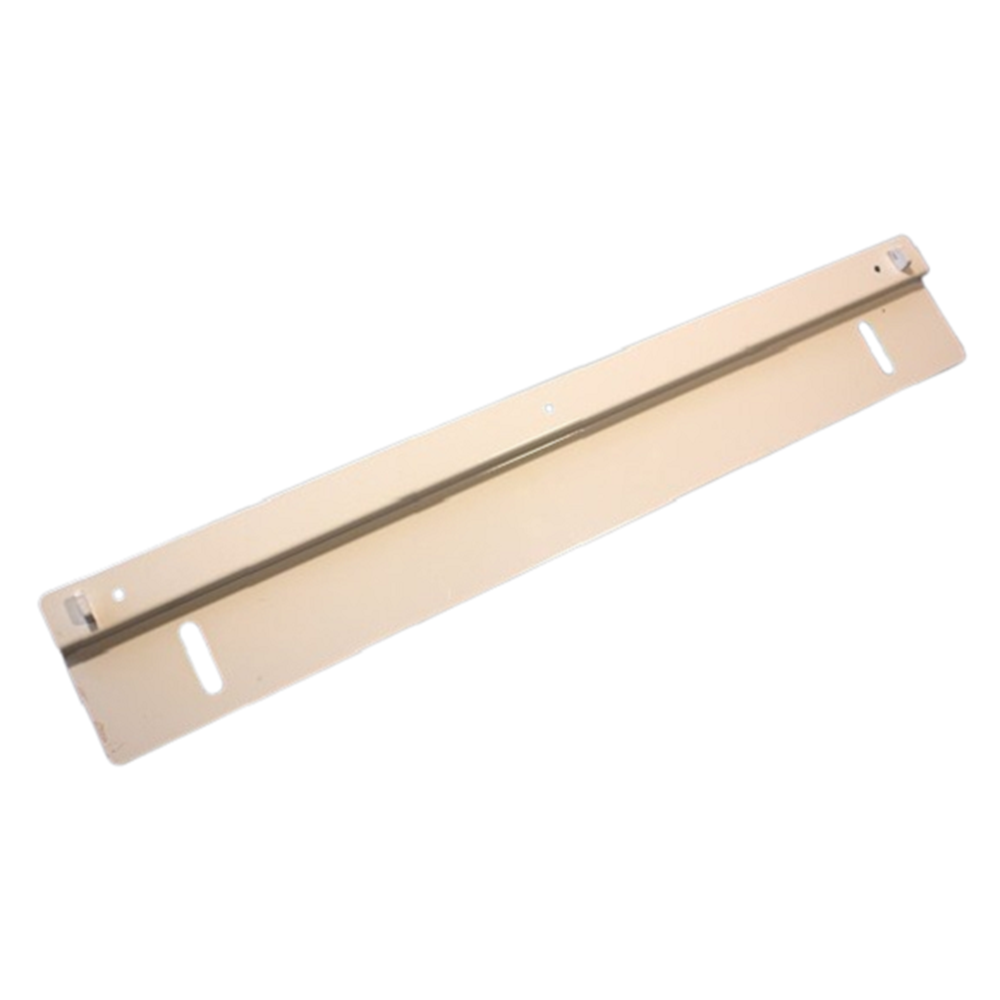

Optional Wall Hanging Bracket for H10, SVC or HQC Battery Charger
Charger & Wall Hanging Bracket available now from our Forklift Battery Chargers Australia online store.

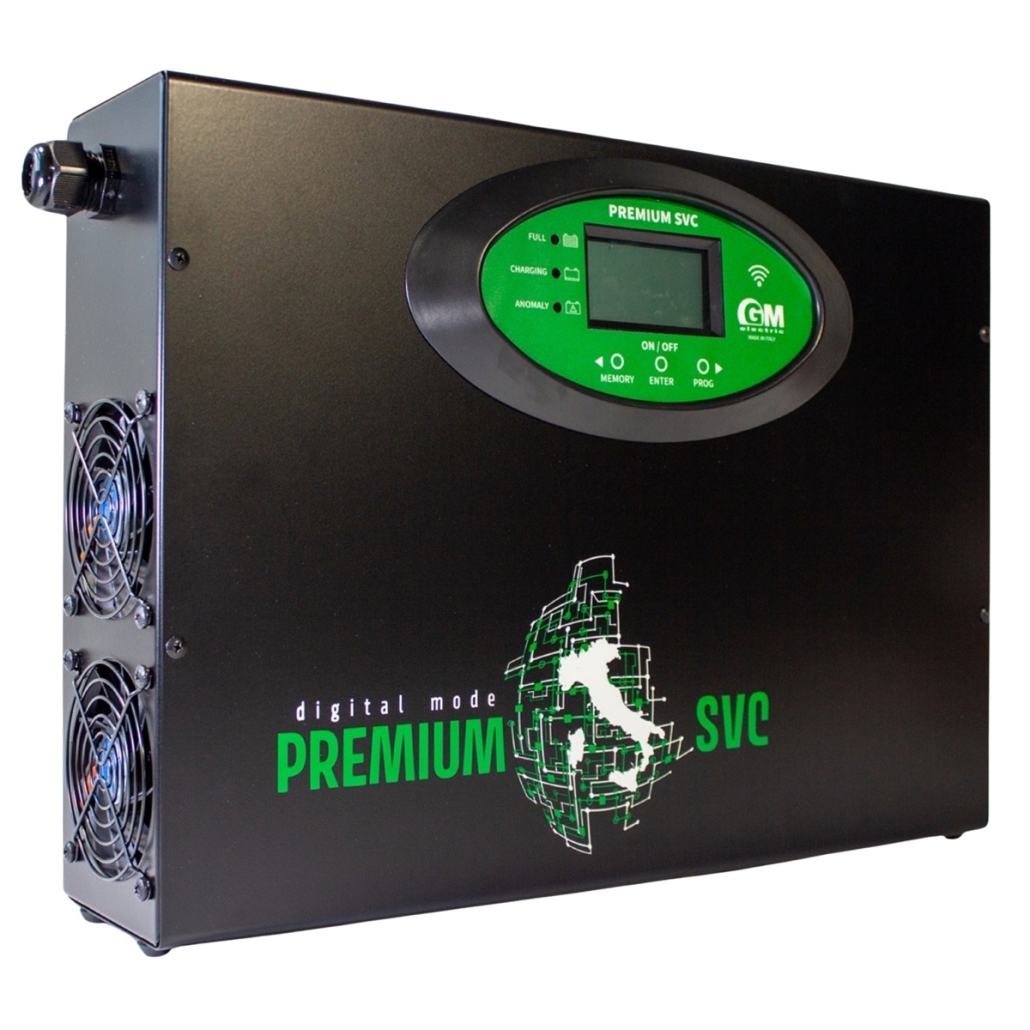

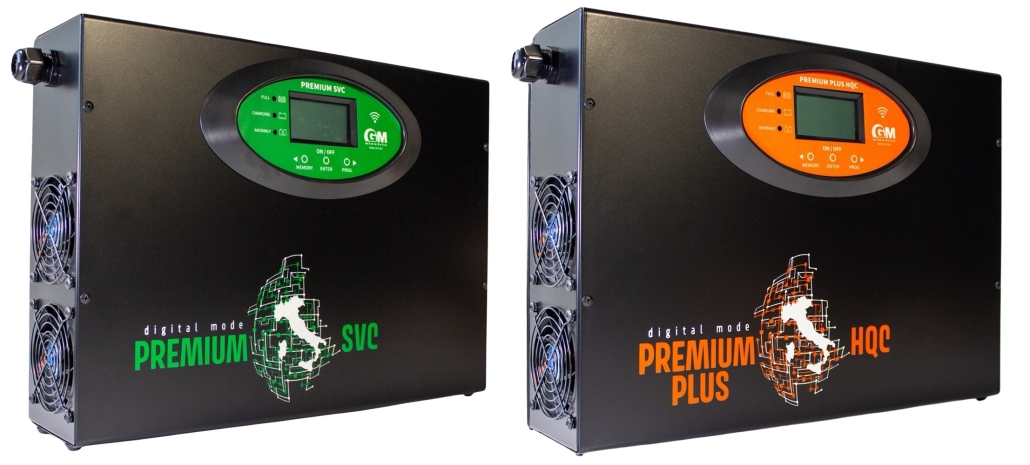

Introducing the ‘Premium SVC’ and ‘Premium Plus HQC’ Range

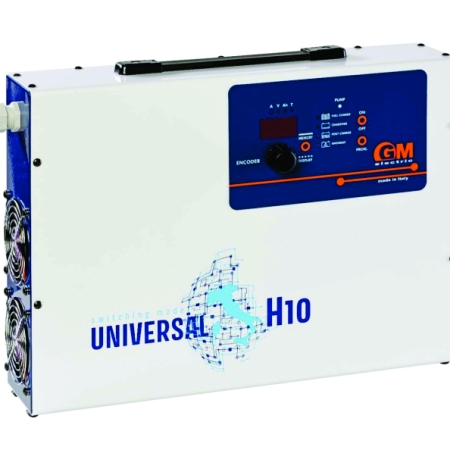

The ‘Universal H10’ model (white and blue) has been a faithful workforce of the GM Electric Range for many years but in 2025 the H10 will be gradually replaced with the ‘Premium SVC’ and the ‘Premium Plus HQC’ Range. The prices will remain the same even though the features have improved. Both the ‘Premium SVC’ and ‘Premium Plus HQC’ chargers contains two key upgrades:
- A more sophisticated LCD Display, and
- Lithium Battery Charging capability via CAN-BUS communication (Note: Your Lithium Batteries OEM are required to provide their CAN-BUS Protocol so that we can load the protocol into your new Charger to enable the Battery, Charger and BMS to communicate).

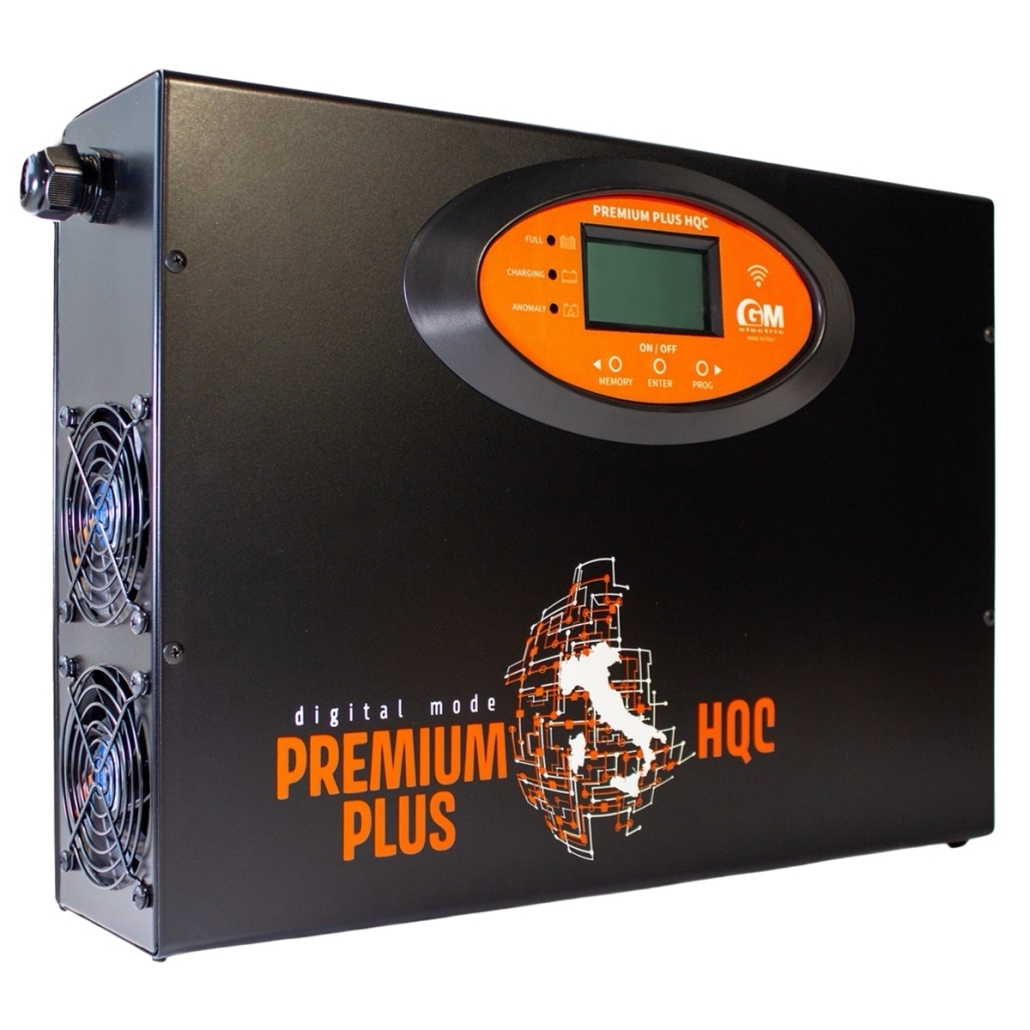

The ‘Premium Plus HQC’ range includes an additional capability where it can automatically detect the Amp Hour size and Voltage of the battery that it is connected to and it uses proprietary algorithms to adapt the charging current as required without the user having to manually change any settings at all. This means a single HQC charger can charge a mixture of different battery sizes and different voltages without the user having to press any buttons or change any settings at all. One single HQC charger can replace every charger in the workshop! The user has the option to choose between ‘Manual’ or ‘Auto Voltage’ mode:
- MANUAL: User can select a fixed voltage output (up to the advertised voltage of the particular charger purchased), e.g. if an 80 Volt charger is purchased then the user can select any voltage up to and including 80V (24V, 36V, 48V, 72V, 80V) but cannot select a higher voltage than what was purchased (96V or 120V),
- AUTO: Charger can automatically detect the voltage of the battery that it is connected too (up to the advertised voltage of the particular charger purchased) from the following ‘most common’ voltages only: 24V, 36V, 48V & 80V.
For the time being we are continuing to supply H10 models and gradually on a product-by-product-basis the H10’s will be replaced by the Premium SVC’s and then the Premium SVC’s will be replaced with the Premium Plus HQC’s. Please contact us if you have any queries about what model charger is available in your required size.
